CNC Spring Making Machines and Spring Formers

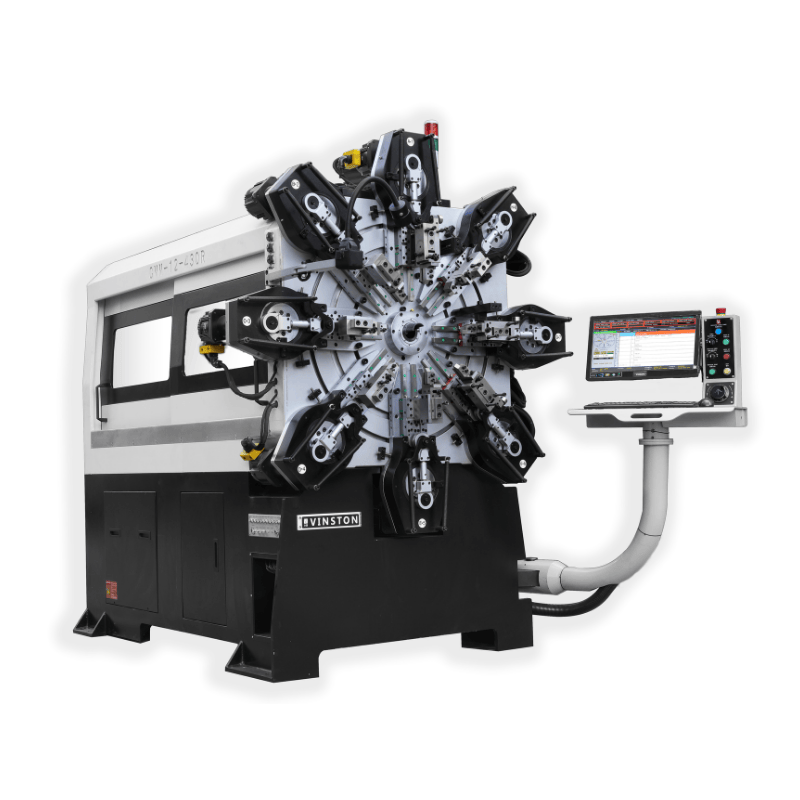

CMM-12-430R Spring Machine

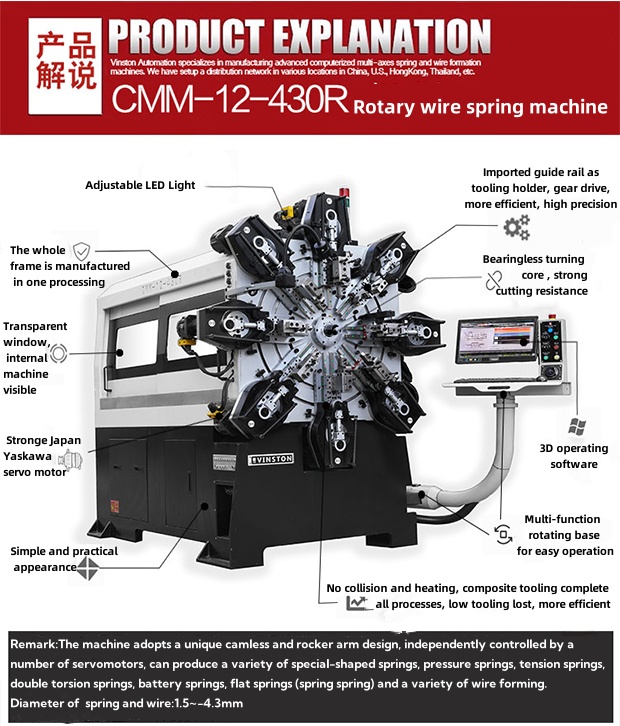

Vinston CMM-12-430R Rotary wire, Spring Machine. It can produce springs and wire forming with wire diameters ranging from ?1.5 to 4.3 mm. This machine adopts a unique camless and armless design, controlled by multiple servo motors independently. It is capable of manufacturing various types of special springs, compression springs, tension springs, double torsion springs, battery springs, flat springs (clock springs), and various wire forming parts. It offers high precision, quick setup, and stable reliability.

GET A QUOTE

Product Advantage

1、All servo slides utilize double rails for stable and precise adjustments.

2、X-Y slide (lateral slide) facilitates pitch adjustments and provides an extra blade option.

3、Dual or two spinner support.

4、Fault detection and warming systems provide lights out production.


Technical Parameters

MODEL CMM-12-430R
Wire Dia. 1.2-4.0mm
Max. Wire Feed Length Unlimited
Number Of Axes 12 Axis(Spinner included)
Power 26KW
Voltage 220V/380V/410V
Hardware Industrial
Voltage Regulator Power 30KVA
Air Compresser System Air pressure 5-6KG/cm
Air cylinder 3pcs
Dimensions Depth 3540mm/140"
Width 2240mm/88"
Height 2200mm/87"
Machine Weight 4845KG/10702 lbs

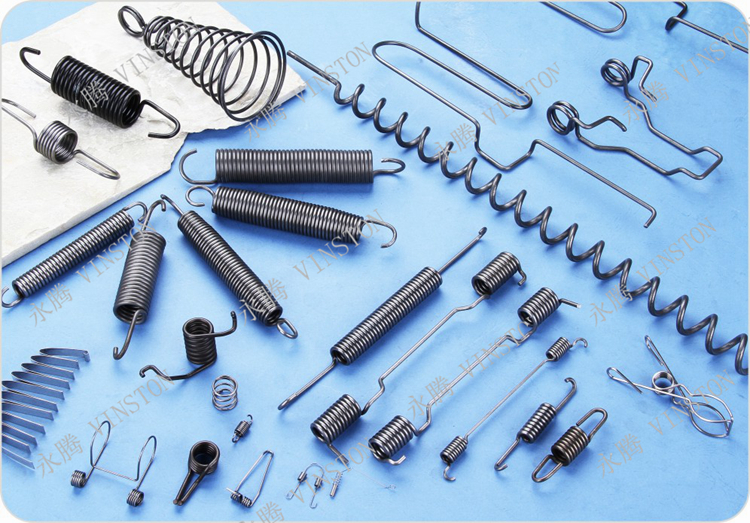

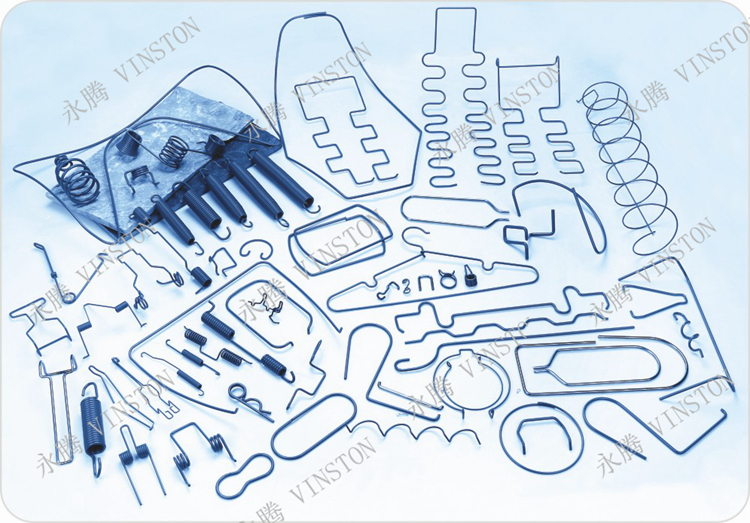

Sample Display
